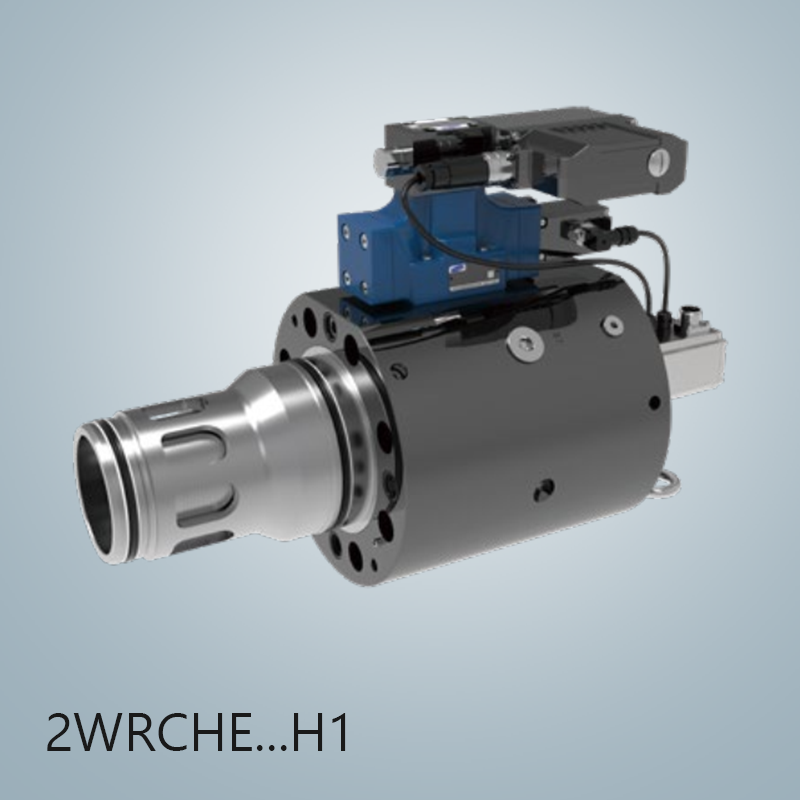

2WRCHE…H1

• Three-stage cartridge valve: Pilot-operated high-frequency valve with spool and sleeve structure servo valve with voice coil
• Extremely fast step response
• Flow direction B to A and A to B
• Features an integrated controller, standard shock-absorbing pads, and high vibration resistance, complies with standard EN60068-2
• Cavity and mounting pattern according to ISO7368
• High control accuracy: high response sensitivity, low hysteresis
• Excellent flexibility: suitable for position, pressure, force and velocity control
• Typical applications:
  - Die-casting machines
  - General presses

2WRCHE...H1_EN.pdf
